SOLUTIONS | Cargo Walls
BETTER BUILD. BETTER CUSTOMER EXPERIENCE.™
SOLUTIONS | CARGO WALLS
Built to Support. Designed to Perform.
Our cargo trailer wall panels are engineered for strength, durability, and superior aesthetics, ensuring long-lasting performance in standard and heavy-duty applications. We offer a variety of wall panel materials, including Engineered Structural Panels (ESP), Plywood, Oriented Strand Board (OSB), and SuperStratum composite panels—each designed to meet the unique structural and durability demands of cargo trailer manufacturing.SuperStratum Aluminum Composite Panels

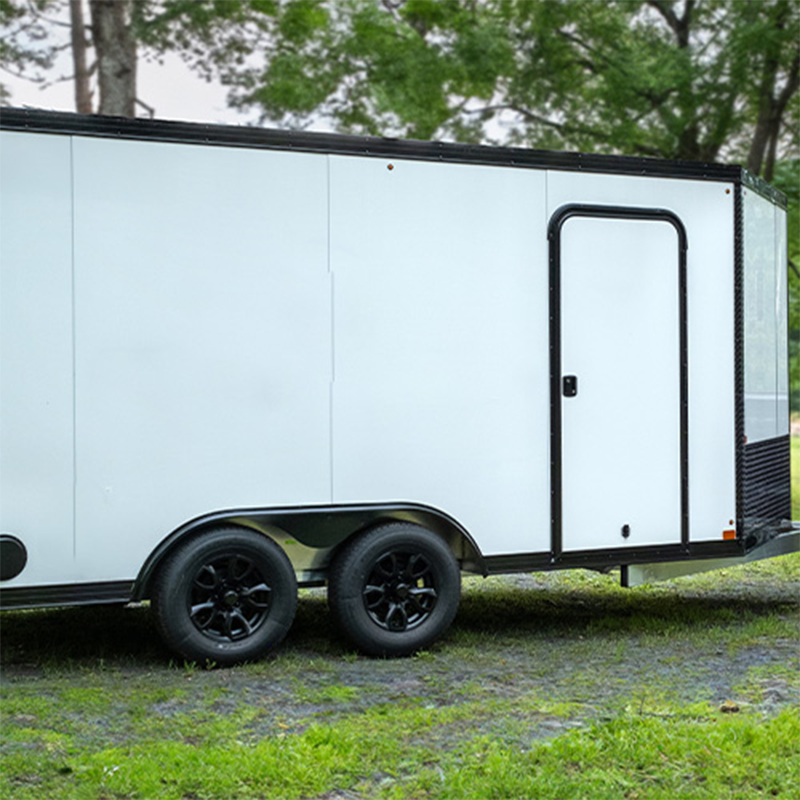

Our SuperStratum Aluminum Composite Panels (ACP) feature dual aluminum sheets bonded to a fire-retardant, low-density polyethylene core for premium exterior and interior trailer wall applications.
These panels provide exceptional dent resistance, protection against oil canning, and superior insulation properties while maintaining a smooth, high-end finish. Their lightweight yet durable construction helps manufacturers build stronger, more visually appealing cargo trailers.
With cut to size options, our ACP offers greater convenience, reduces material waste, and saves time on-site by eliminating the need for additional cutting.
Multilayer Composition Benefits:
- Resistant to warping even in extreme temperatures
- Impact & water resistant
- Easily maintained
- Reduces noise

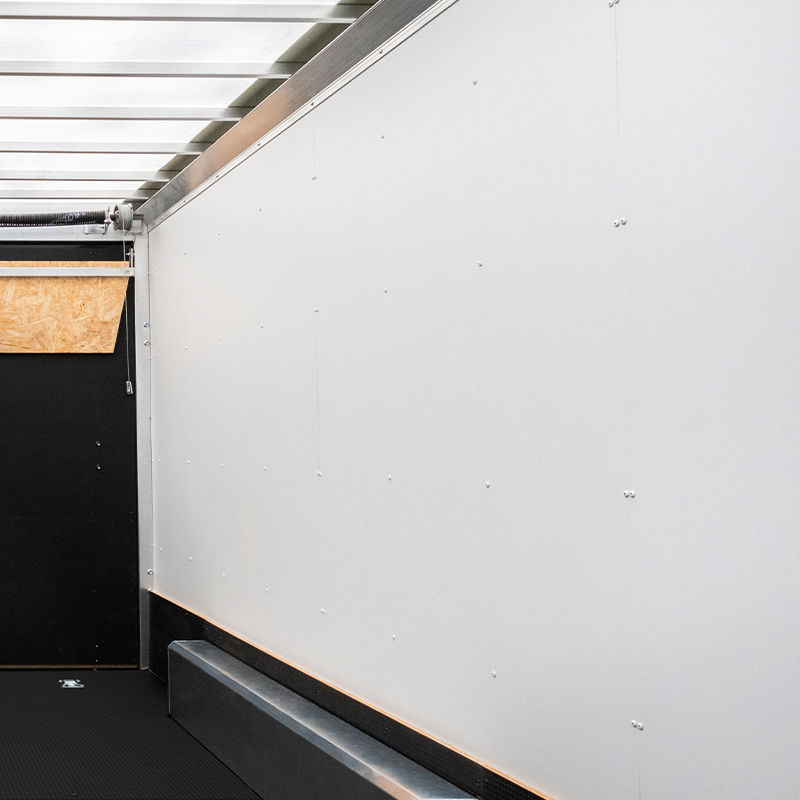

SuperStratum Vinyl Panels
Designed for moisture resistance and durability, our SuperStratum Vinyl wall panels feature a clean, vinyl overlay, offering superior screw retention on smooth surfaces. These panels combine aesthetic appeal with long-term performance, making them an ideal choice for cargo trailers requiring a sleek interior finish with added protection against wear and tear.
Key Features:
- Panel grain does not telegraph through the vinyl overlay
- Your choice of substrate and color of vinyl overlay
- Lays flat
- Excellent screw retention
- Easy to route or cut
- Standard thickness of 3.6mm, 5.2mm, or 3/8” (9mm) with others available upon request
- Standard 4×8 sheets with cut to size options available

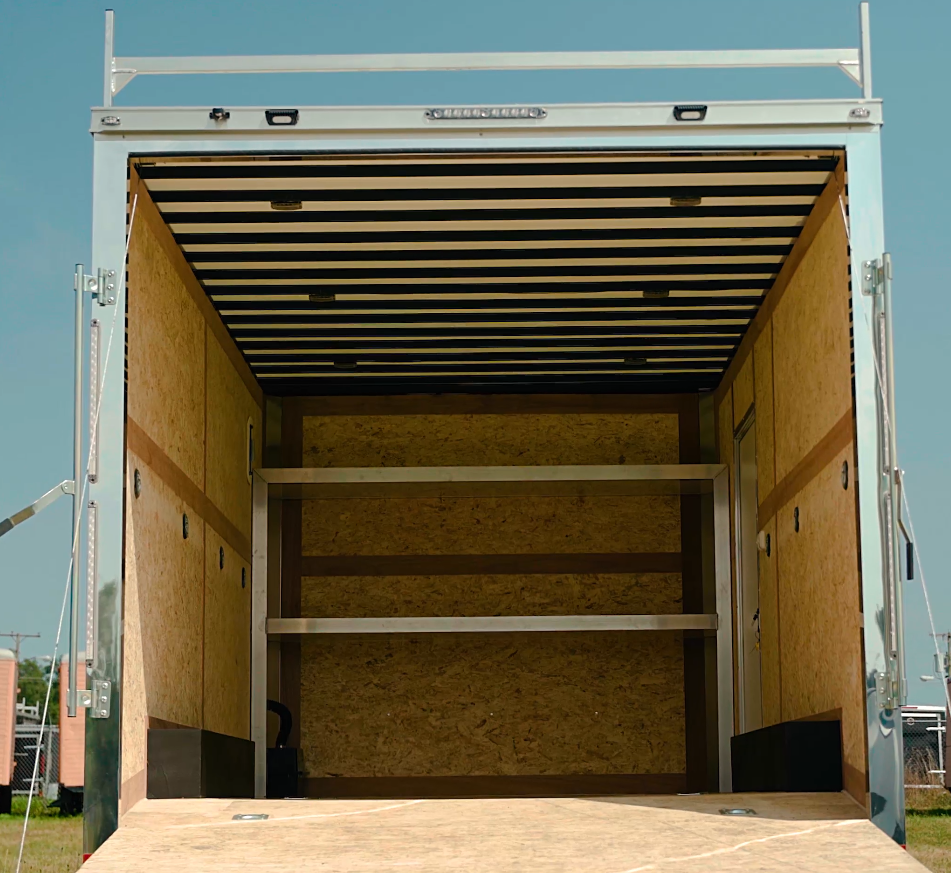

ENGINEERED STRUCTURAL PANELS (ESP)

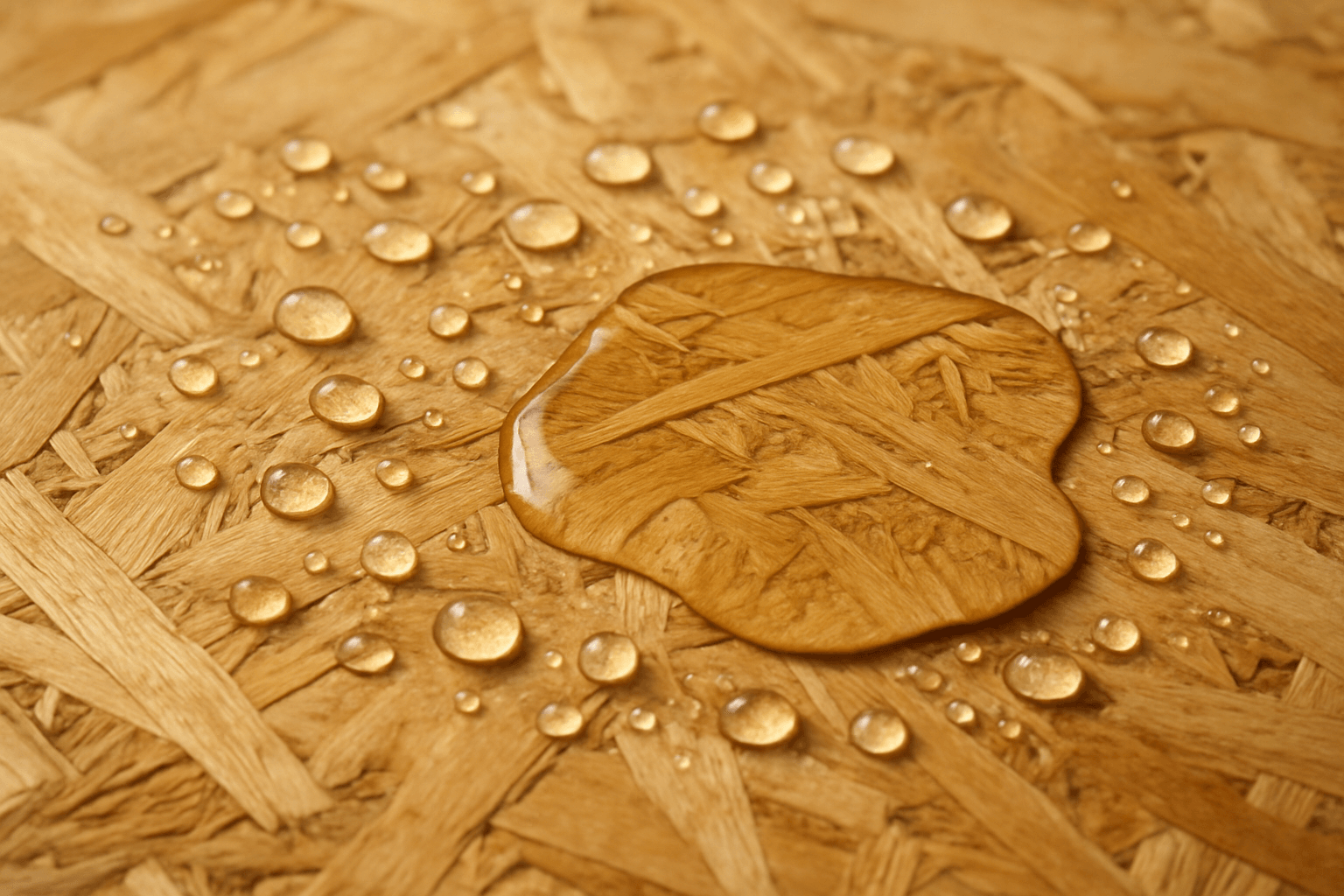

Our Engineered Structural Panels (ESP) are formulated with additional resins and high-quality wood, meeting strict thickness tolerance requirements for precise applications where strength and rigidity are critical. They offer exceptional load-bearing capacity, enhanced moisture resistance, and optimal stability, ensuring cargo trailers withstand the most challenging conditions.
Free of patches, putties, and other imperfections, such as knotholes or core voids, the ESP panels offer better resistance to twisting, warping, and delamination than standard Oriented Strand Board (OSB) panels and Plywood.
With multiple manufacturing locations across North America, we help manufacturers reduce transportation costs and lead times while maintaining consistent quality and supply chain efficiency. Investing in superior wall materials results in a stronger, more durable product, increasing longevity and performance for end users.
- Engineered to lie flat: Resistant to twisting, cupping, cracking, warping and delamination
- 100% MDI resin for water resistance and anti-swell properties
- Superior yield due to minimal defects common in plywood
- Free of patches, putty, and other imperfections such as knotholes or core voids
- CARB exempt- free of any urea-formaldehyde resins
- Meets or exceeds APA PS2 standards
- Available sanded on one or both sides
- 3/8”, 5/8”, and 3/4” thicknesses for use on walls and floors
- Custom pre-cut sizes, including standard 4’x8’

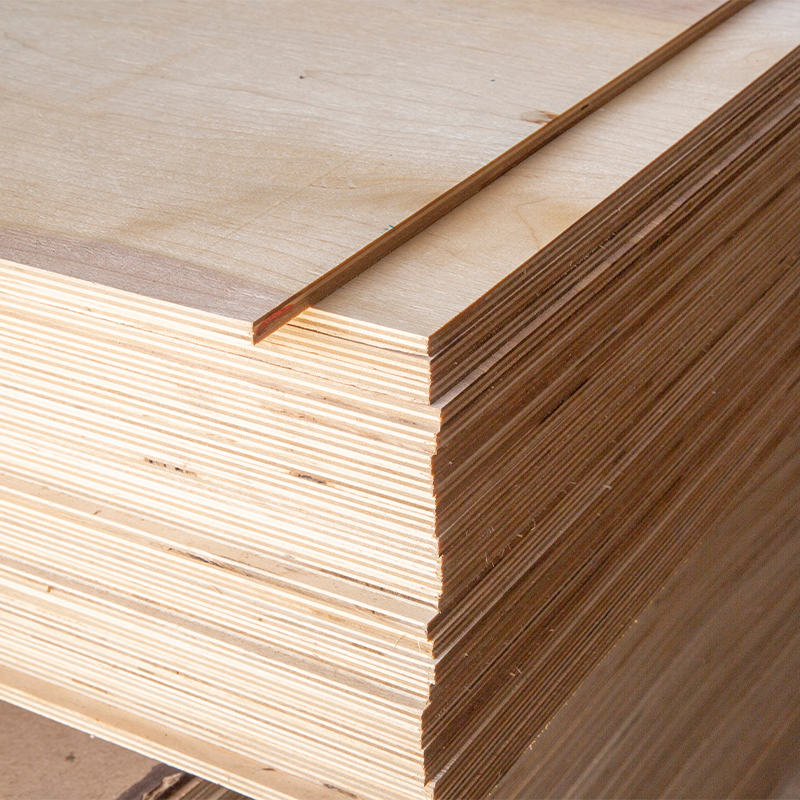

Plywood Options
Reliable and adaptable, our plywood offerings strike the ideal balance between strength, affordability, and ease of use. Our plywood products deliver dependable results across a wide range of factory-built applications.
Standard Plywood Panels
These panels are a workhorse of the industry—strong, stable, and suitable for structural and non-structural uses alike.
Key Features:
- Excellent strength-to-weight ratio
- Compatible with a variety of adhesives and fasteners
- Available in multiple thicknesses and grade
Lauan Panels
Lauan (also known as Lauan or Meranti plywood) is a smooth, lightweight hardwood panel that’s ideal for non-structural interior use.
Key Features:
- Smooth surface ideal for finishing or decorative overlays
- Lightweight and easy to cut, fit, and install
- Stable base for vinyl and laminate
- Available in standard and custom sizes

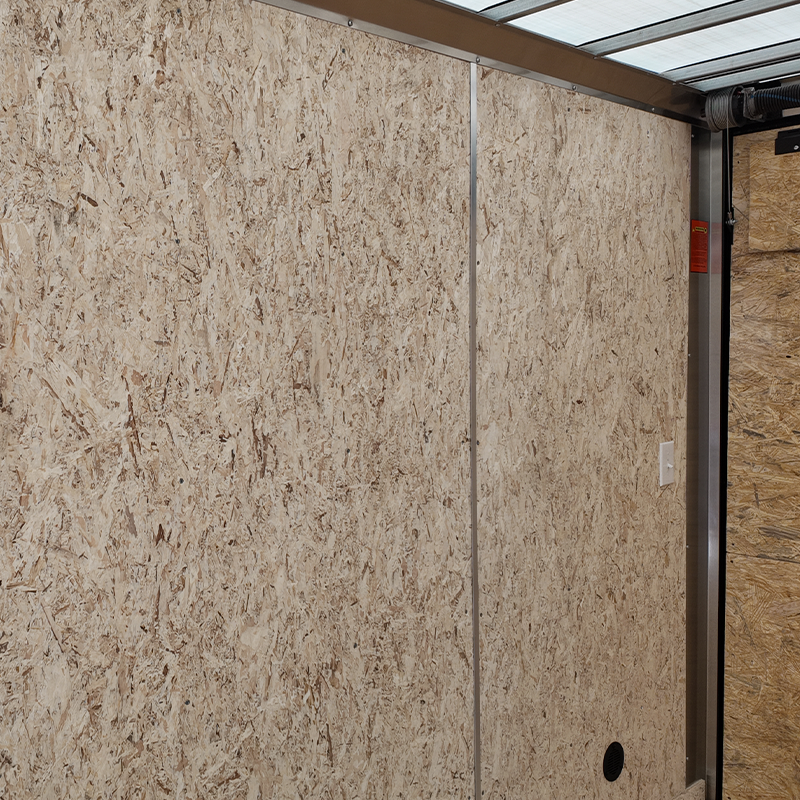

OSB Panels
Manufactured with precision from layers of wood strands bonded with high-performance adhesives, OSB provides a stable, uniform panel perfect for high-volume factory-built construction.
Key Features & Benefits
Consistent Density
OSB’s engineered composition ensures even density across the panel, making it highly reliable for nailing, stapling, or screw applications without splitting or warping.
High Shear Strength
The layered strand design offers excellent shear resistance, making OSB a strong choice for structural stability.
Versatile Sizing & Grades
Available in multiple thicknesses and performance grades, our OSB panels can be tailored to meet the structural and cost requirements of your specific application.
Smooth Install, Every Time
With tight manufacturing tolerances, OSB panels lay flat and align easily, reducing labor time and ensuring consistency across builds.
CARGO TRAILER SOLUTIONS
1. LightLid Translucent Roof
2. Engineering Structural Panel
3. SuperStratum Vinyl Panel
4. SuperStratum Floor
5. SuperStratum Aluminum Composite Panel
6. HD Series Door
let’s build the perfect wall together.
No two builds are the same—and neither are our wall solutions. Whether you need engineered strength, pre-cut precision, or custom features, our team is ready to collaborate and deliver panels that match your specs and streamline your production.
